Rebar Benders

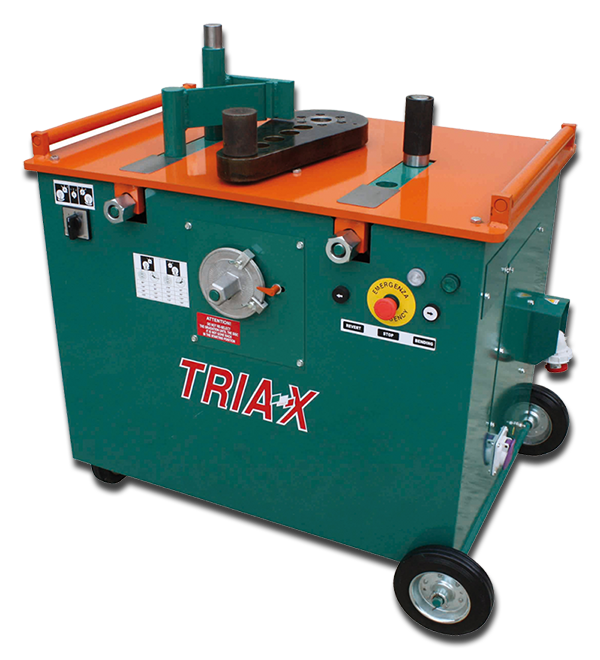

TRIAX Heavy Duty Bender, Model PFX55 – 100% made in ItalyTRIAX Heavy Duty Bender, Model PFX55 – 100% made in Italy





















SPECIFICATIONS:

Bending Capacity – up to #16 (52 mm)
Motor – 7.5 HP
Three phase 480V 60Hz.
Weight – 1,433 lbs
Dimension – 44.09″(L)    30.7”(W)    36.2″(H)

NO. OF BARS TO BE BENT AT A TIME:

#16 (52 mm) – 1
#13 (40 mm) – 2
#11 (34 mm) – 3
Exceeding the above mentioned maximum limits may cause serious damage to the machine or injuries to people.

FEATURES:

  • - Equipped with two stages gear reduction unit, which allows any type of bending without any mechanical effort.
  • - The disc of bending and combined machines rotates in both directions, coming back automatically to starting point.
  • - Equipped with a micro switch which prevents the machine from working if the door is open according to safety rules.
  • - All machines have double electric controls for the complete freedom of the operator.
  • - Electric controls work with low voltage current according to the rules.
  • - All machines are equipped with an automatic graduated regulator to set precisely the bending angles
