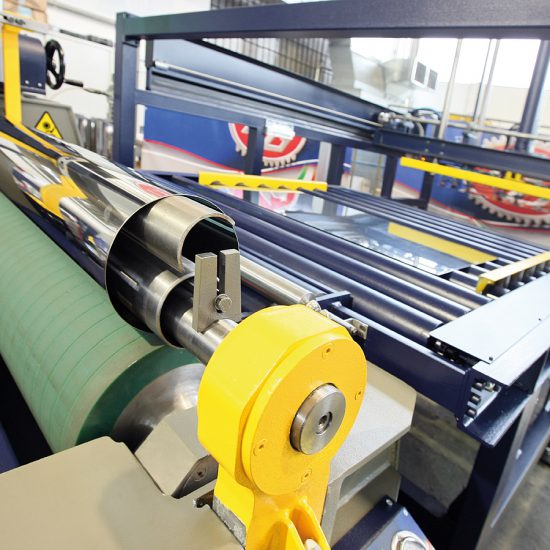

BENDMAK CYL – ST 3-roll Asymmetrical Plate Bending Machine

Posted on

The most economical and powerful machine among the 3-rolls mechanical plate bending machines. Because of the electrical motor on the upper and lower rolls, driven by planetary gearbox through a gear system this machine is the most preferable type in the sheet metal processing industry.

The machine is built of St-52 steel, is robust and long-lasting by the welded steel frame.

Standard Equipment

  • Back roll with motor
  • Cone Bending Device
  • Induction Hardened Rolls (HPRC 58-62)
  • Body made of St-52 steel
  • Opening top roll to side after bending for taking out the material easily
  • Asymmetrical design for perfect pre-bending
  • For the perfect result, top and bottom rolls driven by brake electric motor and planetary gearboxes in gear system
  • Rolls made of special steel
  • Built accordance with EU norms
  • Portable control panel in order to control material from required locations

Optional Accessories

  • Extended rolls for setting up profile rolls when required
  • Profile rolls
  • Digital readout for displaying the position of back roll
  • Bottom roll powered with electric motor

CYL-ST 3 Rolls Asymmetrical Plate Bending Machine Specifications

Click HERE for specifications
